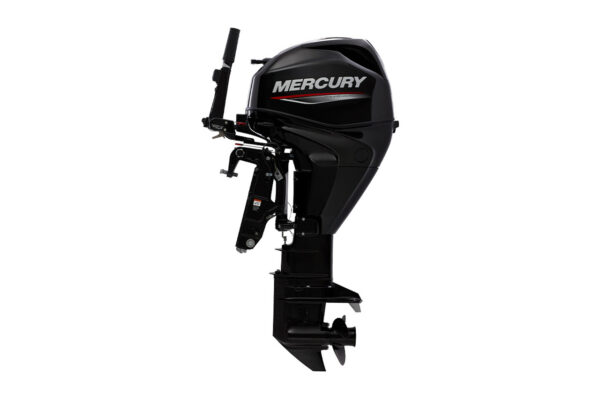

Mercury 30MLGA-EFI Outboard Motor Four Stroke

Description

Type:: Outboard Motor
Year:: Current
Model:: 30 HP
Model Number:: 30MLGA-EFI
Part Number:: 1A3G213FK
Series:: Four Stroke
HP:: 30
HP/Kw @ Prop:: 30 / 22.4
Full throttle RPM:: 5250-6250
Cylinder Configuration:: 3 (in-line)
Displacement (L / CID):: 32.1 / 526
Bore and Stroke (in / mm):: 2.40 x 2.36in
Fuel Induction System:: 2 valves per cylinder, single overhead cam (SOHC)
Ignition:: CDI w/electronic spark advance
Fuel System :: Electronic Fuel Injection (EFI)
Alternator Amp:: 15 amp / 186 watt
Cooling System:: Water-cooled with thermostat
Starting:: Manual
Gearcase Ratio:: 1.92
Gear Shift:: F-N-R
Steering:: Remote
Trim System:: Gas assist
Exhaust System:: Though prop
Shallow water trim range (degrees):: 16
Recommended Oil:: Mercury 4-Stroke Outboard Oil
Fuel Ethanol Tolerance:: 87 octane/up to 10% ethanol
Remote fuel tank standard (gal / L):: 6.6 / 25
Engine Protection Operator Warning System:: Low oil pressure,Overheat,Over-rev,Sensor failure
Shaft Length:: 20 in (508 mm)
Dry Weight * Lightest model available:: 172lbs / 78kg
