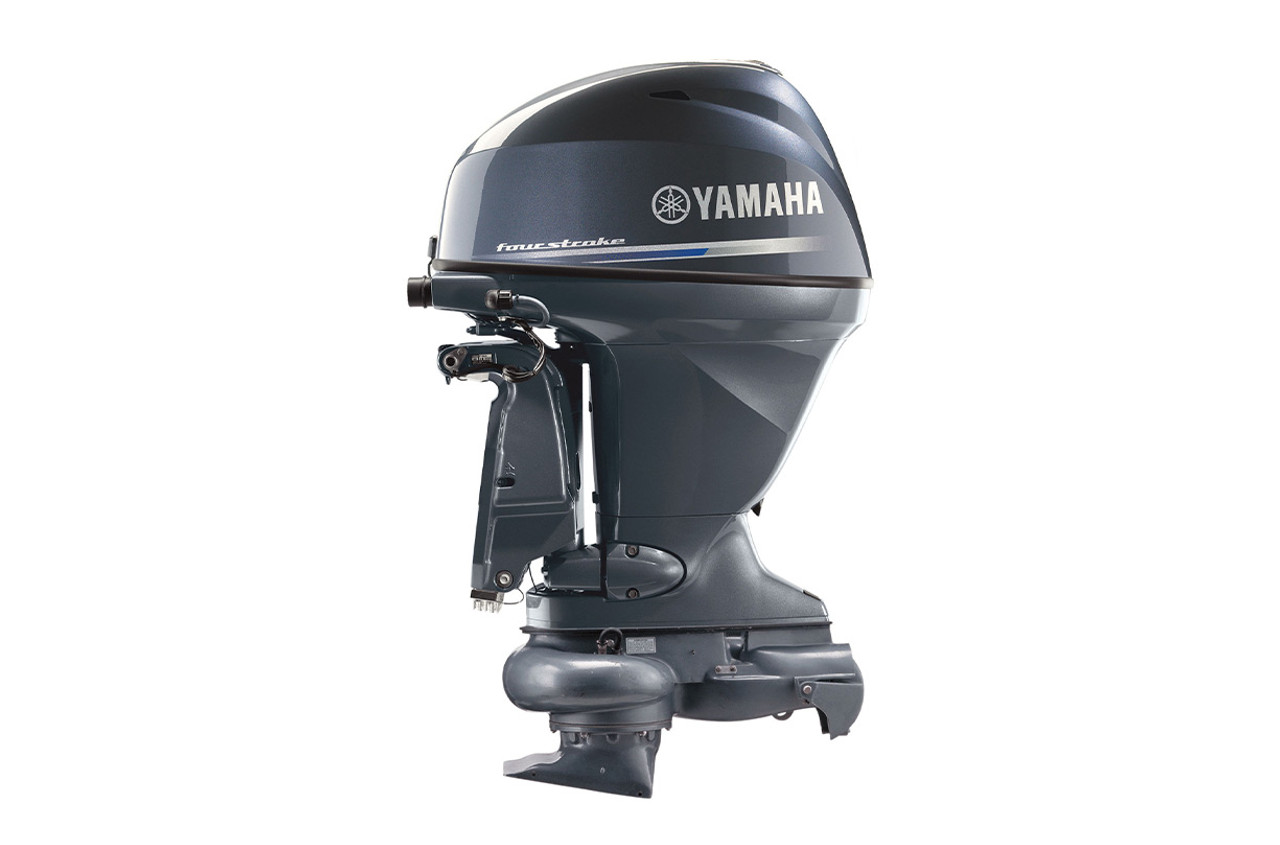

Yamaha F40JEA Outboard Motor Four Stroke Jet Drive

Description

Type:: Outboard Motor
Year:: Current
Model:: F40 HP Jet Drive
Model Number:: F40JEA
Series:: Four Stroke Jet Drive
HP:: 40
Engine Type:: 3 Cylinder
Displacement:: 45.6 ci (747 cc)
Borex Stroke:: 65 x 75 mm (2.56 x 2.95in)
Prop Shaft Horsepower:: 30 @ 5500 RPM
Compression Ratio:: 9.4
RPM Range:: 5000-6000
Fuel Induction System:: EFI (SOHC)
Fuel Type:: Unleaded gasoline (minimum pump octane 87)
Exhaust:: Thru prop
Ignition System:: TCI Microcomputer
CARB Rating:: 3-Star
Alternator Outputat WOT:: 16A
Starting System:: Electric
Lubrication:: Wet Sump
Oil Capacity:: 2.1 quarts
Recommended Engine Oil:: Yamalube 4M
Gear Ratio:: Direct Drive
Control Type:: Remote
Trolling Throttle Adjustment:: N/A
Cooling:: Water, Thermostatic Control
Gear Shift:: F-N-R
Command Link System:: No
Enhanced Ultimate Corrosion Protection System UCP:: Standard Feature
Power Trim and Tilt:: No
Shaft Length:: 20 inch
Gearcase Rotation:: Jet Drive
Propeller:: Jet Drive
Tiller Handle Kit:: Optional
Freshwater Flush:: Yes
